1936
Airstream
" Boat Tail "
|
Before Picture of Driver Side & Rear
|
Before Picture of Passenger Side
|
Before Picture of The Interior
|
Passenger Side Interior Before Picture - The Cabinet Stays
|
Driver Side Interior Before Picture - The Cabinet Stays
|
Close-Up of Driver Side Interior Cabinet Before Picture
|
Close-Up of Driver Side Windows Before Picture
|
Getting Started on Sheet Metal Damage
|
That's Pete Drilling out the Old Rivets
|
Getting Closer to Removing Damaged Panel & Fabricating a New One
|
It's On & Here Come the Rivets
|
That's Joe Removing the Trim
|
Front Panels marked for Replacement
|

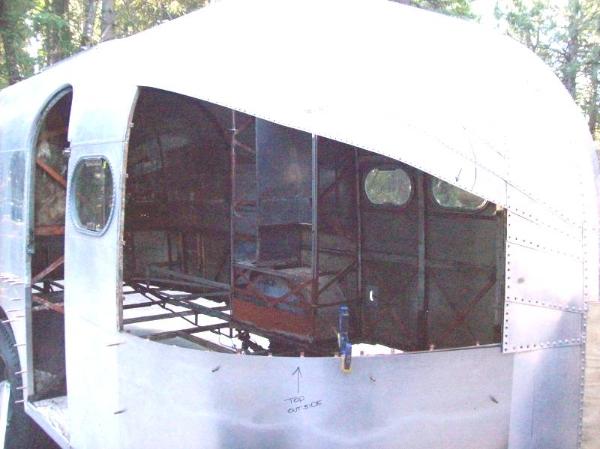

Removing Rivets & Prying Off Damaged Panels
|
Shows Lower Panel Replaced
|
Close-Up of the Lower Panel
|

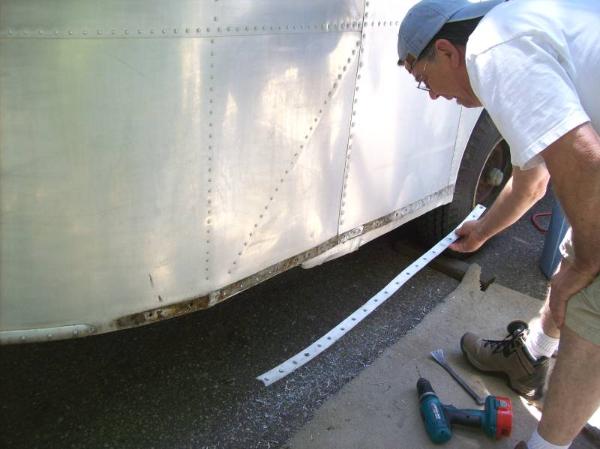

This is the Old Lower Panel showing the Rivet Pattern to Duplicate
|
Exterior of Door
Repair is Complete ... Markings for Fender Skirts?
|
Shows Multiple Panels Replaced - Big Time Compound Curves!
|
Shows Multiple Panels Replaced - Big Time Compound Curves!
|
Rear View of Panels Replaced + Markings for Windows
|
Two Panels Replaced on Driver Side
|
License Plate back on for Boat Tail's trip to the Soda Blaster
|
Before & After View of Soda Blasting
(Similar to Sandblasting but not as hard on the Metal)
|
Front View - Got the Holes cut for the Windows!
The Color Variation on the Left shows the Replaced Panels.
Once the trailer is polished everything matches!
|

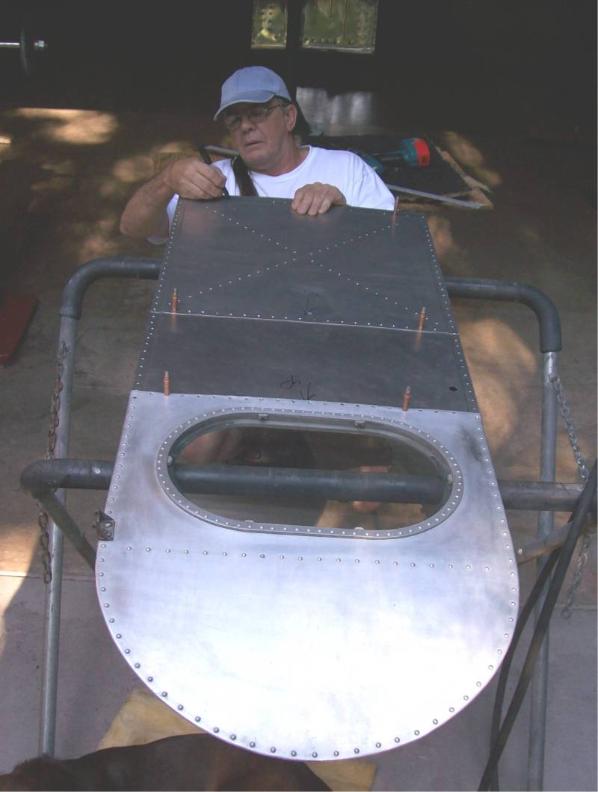

The Entry Door Needed an Extreme Make Over!
Here we are marking the Rivet Placement for the new panel.
|
Outside View Inside View
New Interior Lower Panel New Interior Upper Panel
The "Oh So Cool" Air Intake
|
Boat Tail's first Air Intake Fitting
(More Alterations Needed)
|

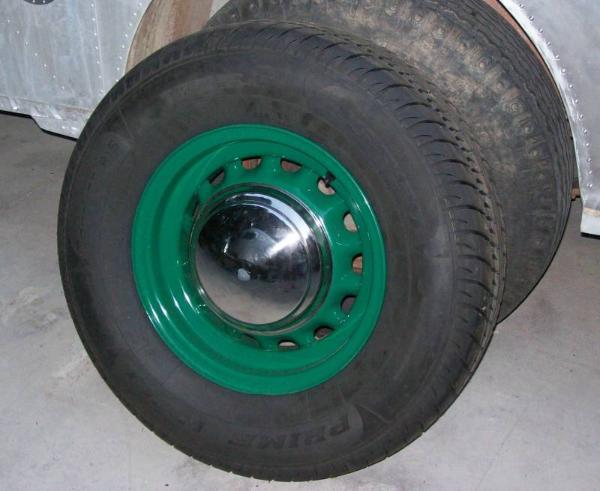

New Wheels, Tires & Hub Caps Awaiting their New Axle
(That's a Powder Coat Finish)
|
Rear Windows!
(Louvers will go in the squares below)
|

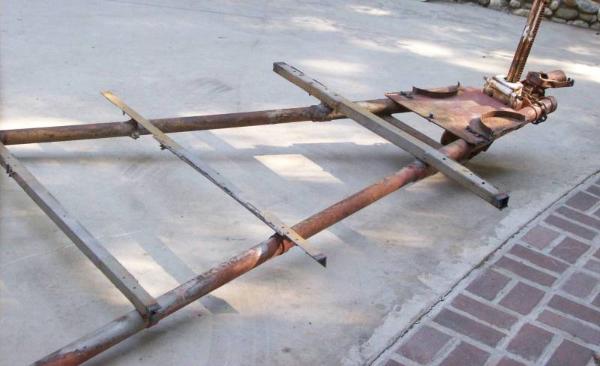

Sparks are Flying - Time for the Very Ugly Tongue/Hitch to go!
|

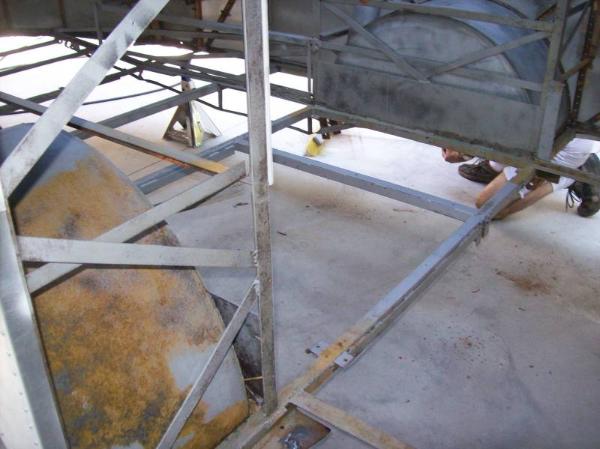

And ... with the removal of the Very Ugly Tongue/Hitch comes the Body Frame too!
|
New Exterior Front Look
(Sure looks better with the Ugly Hitch Cut Off)
|
Interior Front as she awaits New Frame
|
Pete says these Sky Lights are a Nightmare to work on.
(Original Frames - New Crystal Clear Glass)
103 Screws in each Sky Light
|

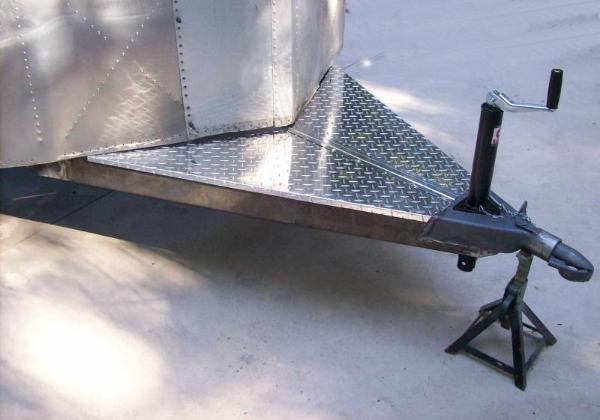

We've got a Tongue & Hitch!
|
View of Tongue / Hitch from a Distance
|
Quite a Difference don't you think?
|

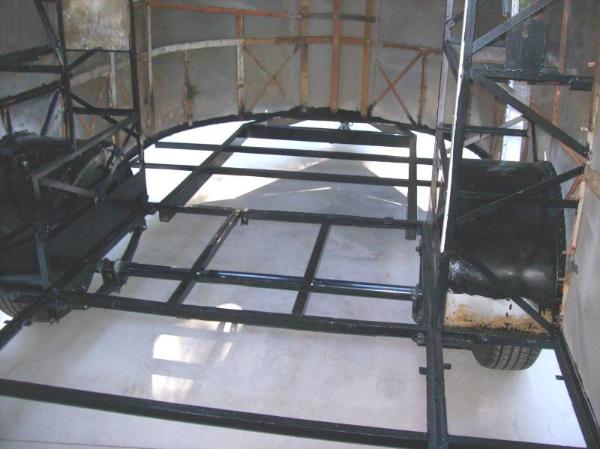

Attached to the pretty Hitch is the New Frame.
See the New Axle?
Everything is now Black because we painted all the Bare Metal with a special
Anti-Rust 'Por 15' Paint.
|
Wheels sitting pretty on the New Axle ... Yes the Wheel Wells got the black paint too.
|

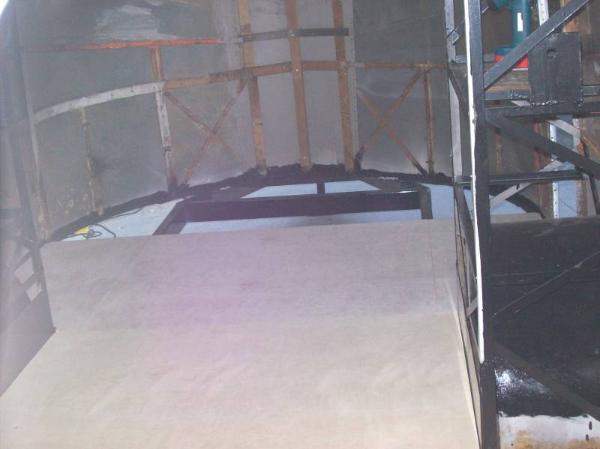

and .... Here comes the Sub Floor!
|
Oh Yea ... That Boat Tail
|
Wood Form Built ~ Window Seals Being Formed
|

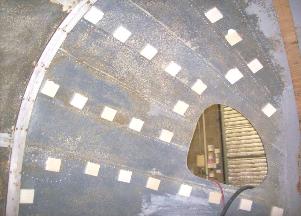

Hundreds of Tiny Blocks & Wood Strips in Preparation for Insulation and Interior Wood.
|

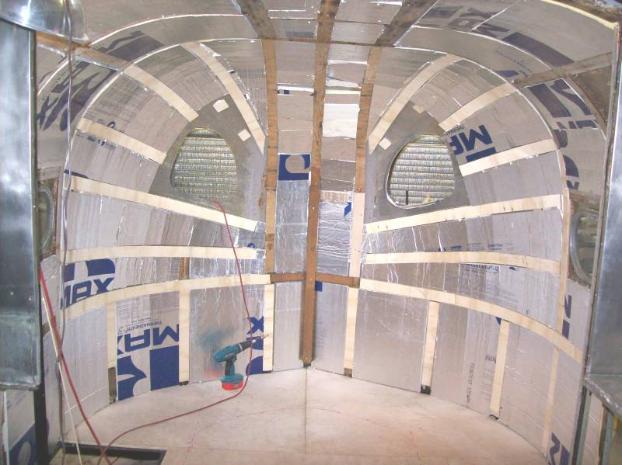

Insulation Completed

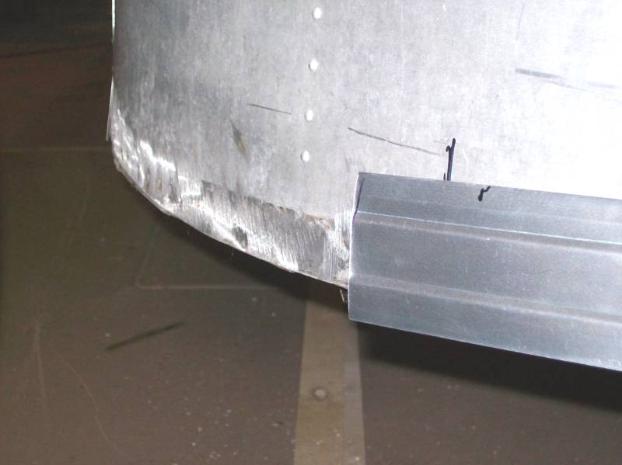

Custom Trim Fabricated to Clean Up the Lower Exterior Edge
|

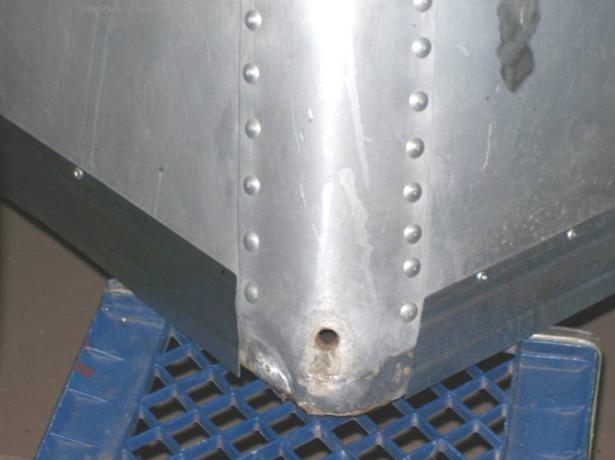

Close Up of the Tail Pieces Coming Together
|

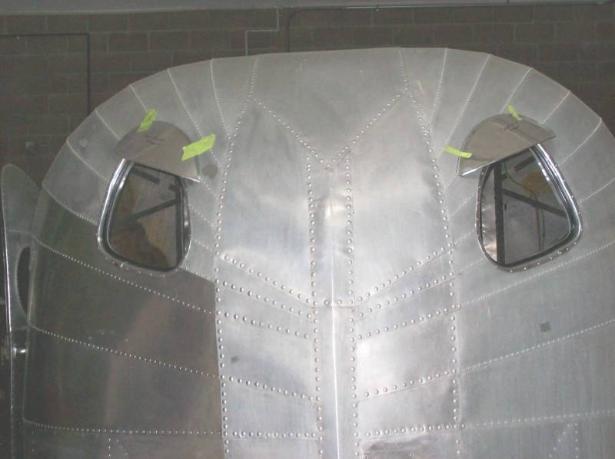

She's got Eyebrows!
(Front & Rear)
|

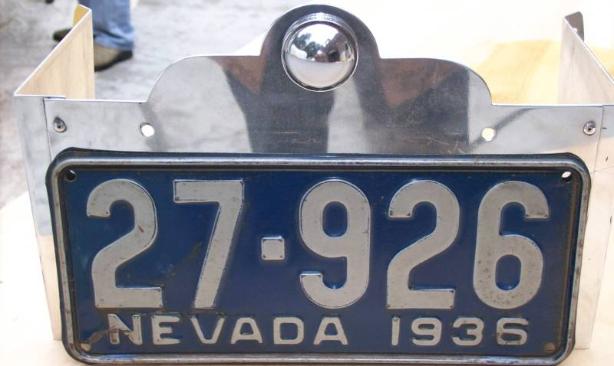

Just in case you want to register the trailer in Nevada we located a "Proper" Plate!
(Shown in Original Condition ~ Will be Restored)
|

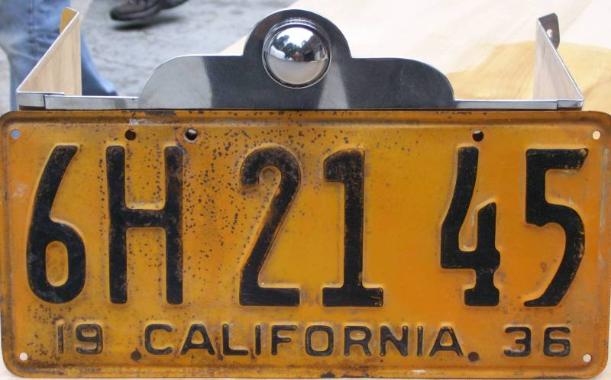

Your California Plate
(Shown in Original Condition ~ Will be Restored)
|
Made you a Fancy Holder for the
Very Cool License Plates
|
~
~
~
~

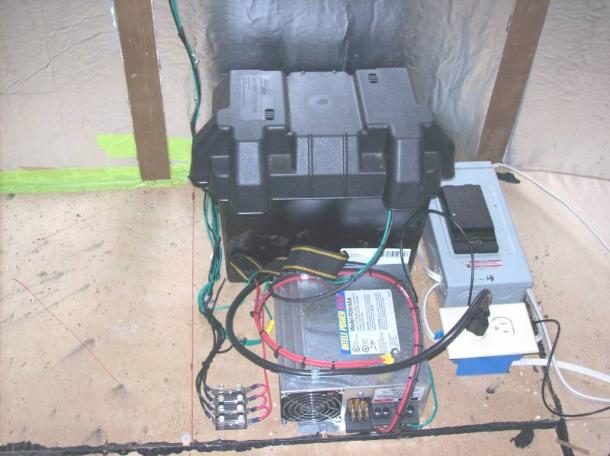

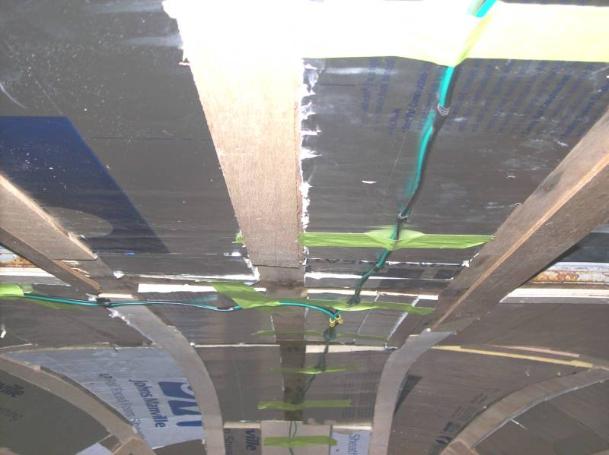

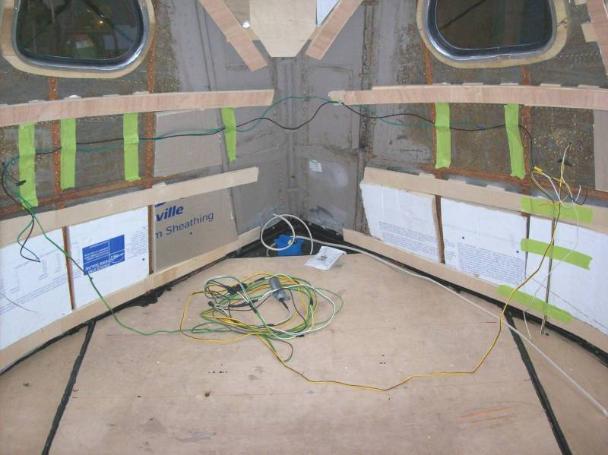

Plenty of Electrical Work Going On ~ Anxious to do the 'Pretty Stuff'
|

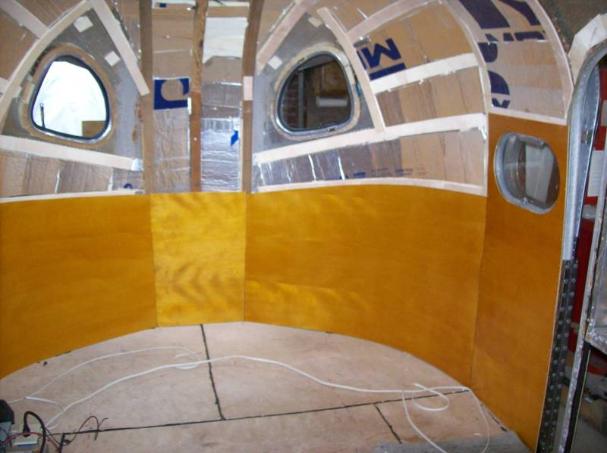

Interior Wood Here We Come.
Now here's some pretty stuff!
|
That's Joe & Pete & Louie the Jumping Dog
|

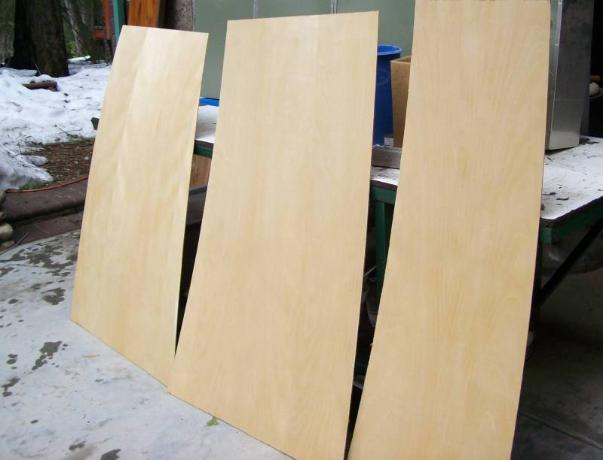

Just 3 More to go & we can start cutting them to fit the Interior.
|
Going to be Pretty, Warm & Cozy.
|
Ceiling View of New Paneling
|
Rear Sections just about Complete
|
Original interior Lights Restored
|

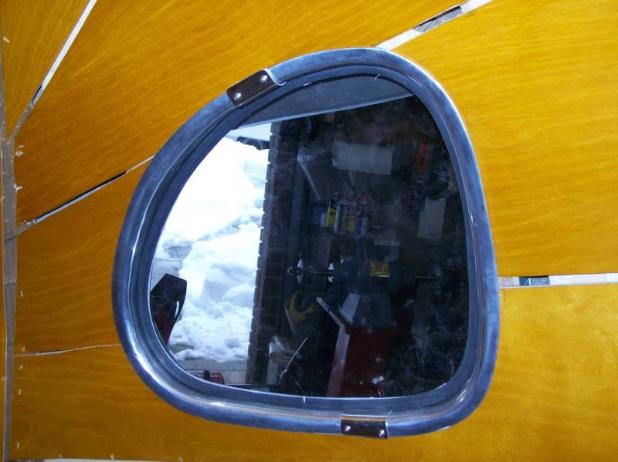

The above 4 Pictures show the finished Windows as seen from inside the Trailer.
|
Front Driver Side Window
Front Passenger Side Window
Rear Driver Side Window
Passenger Side Window
Okay ~ Finally ~ Here we go on the Interior Walls & Cabinets!
Photo shows Rear Cabinet Openings & Bed Platform
|
Basically the same picture as above but shows Ceiling & those Terrific Skylights
|
A little bit further on the Bed Platform + Openings for the Drawers
|
To the Right is going to be the Cooking Area
To the Left is going to be the Kitchen Sink Area
|
That's Joe setting the wall for the Toilet Area
|
Building Kitchen Sink Cabinets.
The Sink is the Original Sink!
|
Building Stove & Refrigerator Area
The Aluminum you see is all Original
|
Shower Close-Up
&
Shower Hardware
|

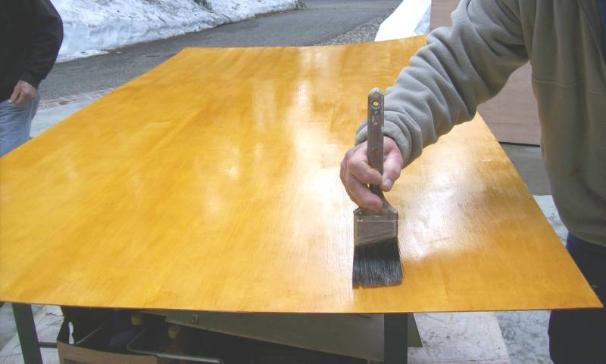

Baton Boards & a Whole lot of Shellac going on!
(Rear Section)
|
Front Section Trimmed Out
|
Packard Tail Lights ... Awesome!
|
Stove Trimmed Out Awaiting Doors & Drawers
|
Kitchen Sink Trimmed Out Awaiting Doors & Drawers
|
Entrance all Trimmed Out
and ....
|
View Walking out the Door ~ Very Good!
|
Full View of Rear Section
|
Dinette Area Seating and Storage
|
Seating Area "Trimmed out" & Table Built
|
Close-up of the Dining Table Trimmed in aluminum
|
Look What Just Came Rolling in from the Polisher!
|
Eyebrows, Bumper & Louvers Permanently Installed
|
Original Roof Vent needs a Patch ~ Going to need something pretty "artsy" to look good on
this trailer!
|
That's Pete building the Cover
|
and ...Here Comes the Bed Platform
and ...
Here's Mark from Artist Upholstery making the Interior Cushions that Kim designed
|
and ...
Here's the 36's LUSH Dining Area
|
and ...
Here's the 36's Comfy Sleeping Area
|
Good Looking Cushion Stop
|
The doors give access to plumbing,
holding tanks, etc
|
Gary
and ... Gotta Have a Door Stop
|
Water Pump Fresh Water Tank & Heater is all under the Bed
Access shown on Bed Platform
|
Fill her UP ~ With Water That Is
|
New Tanks / Hoses / Regulators
|
White Hot Water Tank Door now Matches the Trailer
|
Front and Rear Marker Lights ~They are Awesome Lit Up
|
Fender Skirt Using it's Hinges / Axle is Out & She's up in the Air for the
Belly Pan
|
Just Step On In!
Since the Axle was already off,
decided to raise the Trailer up
4"- 5" so you do not have to
worry about scraping the bottom.
Without the Step it wasn't
comfortable to get in and out.
|
Here we are showing 36'
Raised up 4" - 5" .
|
Only way to get Rid of the Water Leaks at the door was to Divert the Water with an
Eyebrow. Didn't plan on it but it looks very cool.
|
